Features

• Full 3" waterway for flow rate of up to 1250 GPM (4800 LPM)
• Deck Mount only
• Must add four bolt or threaded flange (sold seperately)
• Vertical travel of 63˚ from 12˚ to 75˚ above with inbuilt 37˚ safety stop from 18˚ to 55˚ above
• Large handle for excellent portability
• Fully enclosed worm gear is protected from the elements
• Liquid-filled pressure gauge
• Dual spring-loaded lock pins for quick and easy break apart
• Compatible with a wide range of Protek nozzles and accessories

Specifications

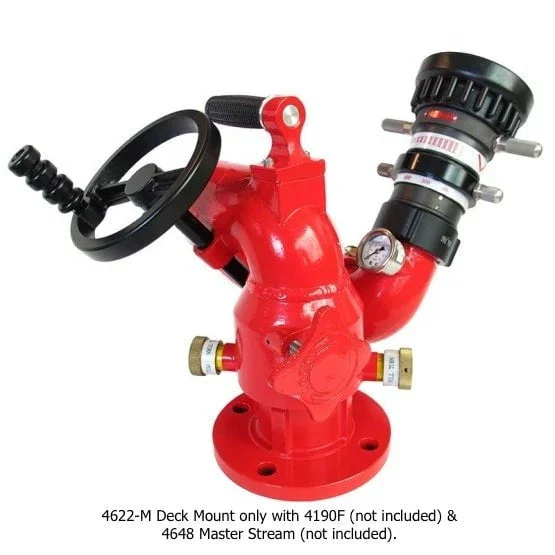

• Model: 4622-M
• 1250 GPM (4800 LPM) in deck mount mode
• Operating Pressure: 100 psi (7 bar), 580 psi (40 bar)
• Inlet: 3" (Four bolt or threaded flange needed, sold seperately)
• Outlet:  2-1/2" (65 mm)
• Control: Single Handwheel
• Vertical Travel:  63° from 12° to 75° above with inbuilt 37° safety stop from 18° to 55° above
• Rotational Swivel: 180°
• Material: Alloy
• Finish: Red Powder Coating
• Weight:  27 lbs (12 kg)
